Superior Heat Resistant
and Fireproof Sheets and Boards
Barrifire series
(Preliminary)
FEATURES
Flame Resistance
at 1170℃ for 10min
No through-holes formed after burning.
Heat Insulation
Low thermal conductivity
Can properly protect electric devices.
Electric Insulation
Non-conductive materials
Well suited for use as insulating material.
Workability
Thin and strong
Can easily be cut by utility knives.
GP series(Sheets)

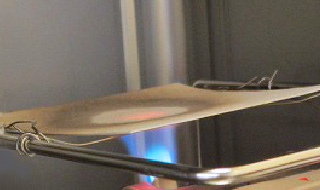

Fire resistance
at 1170℃ for 10min by a burner flame
Our product : No through-holes
General glass paper : Through-holes

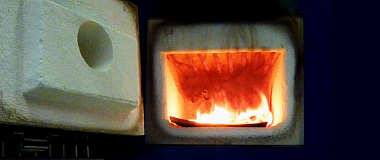

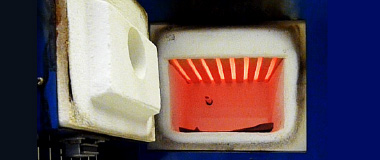

Heat resistance
at 750℃ for 20min in an electric furnace
Our product : No ignitions, maintain its size
General glass paper : Ignite and deform
Electric insulation
Surface resistance:1010-11Ω
Volume resistivity:109-10Ω·cm
PHYSICAL PROPERTIES
| GP50-TR | GP100-TR | GP150-TR | |
|---|---|---|---|
| Grammage [g/m2] | 109 | 192 | 293 |
| Thickness [mm] | 0.16 | 0.37 | 0.52 |
| Tensile Strength(MD) [N/m] | 5,684 | 10,732 | 17,562 |
| Elongation at break(MD) [%] | 1.7 | 1.7 | 2.0 |
| Thermal Conductivity [W/m·K] | 0.10 | 0.09 | 0.11 |
*Contact us for customized products not listed above.
*The above values are typical values, not guaranteed values.
APPLICATION EXAMPLES
- Protective battery covers for Electric Vehicles
- Noncombustible building materials
- Protective sheets against spatters (welding, laser processing)
- Process sheets during the heating process of metal or glass production.
GWB series(Boards)
FEATURES
- High in heat insulation despite being a thin board, and provides soundproofing effect.
- Resistant to fire, forming no ignition, no cracks or holes, even after being under 1170℃ heat by a burner flame for 10 min.
- Glass is used as the main component, a little aged deterioration with a high durability.
- Made of recycled glass-wool.
*Standard board size (mm) 1,500x2,200
PHYSICAL PROPERTIES
| GWB 2.0 | GWB 5.0 | GWB 10.0 | |
|---|---|---|---|
| Grammage [g/m2] | 2 | 5 | 10 |
| Thickness [mm] | 760 | 1,650 | 3,500 |
| Density [g/cm3] | 0.38 | 0.33 | 0.35 |
| Tensile Strength(MD) [N/m] | 4,870 | 14,650 | 25,780 |
| Elongation at break(MD) [%] | 1.7 | 0.96 | 1.24 |
| Thermal Conductivity [W/m·K] | 0.056 | 0.054 | 0.056 |
*Contact us for customized products not listed above.
*The above values are typical values, not guaranteed values.
Electric insulation
Surface resistance:1013-15Ω
Volume resistivity:1013-14Ω·cm
Heat Insulation
Temperature change on the back surface while the front surface being heated at 600℃
APPLICATION EXAMPLES
- Noncombustible interior materials for a roof, a ceiling and a wall
- Noncombustible interior materials as a sound absorber and a heat insulator
- A heat insulator of heating apparatus and a burner stove
