Non-Woven Separator with Ceramic Coating
NanoBaseX(For LIB)
NanoBaseX is a polyester non-woven separator with ceramic
coating, which is suitable for Lithium Ion Batteries.
Higher safety and longer cycle life will be realized
with NanoBaseX.
Features

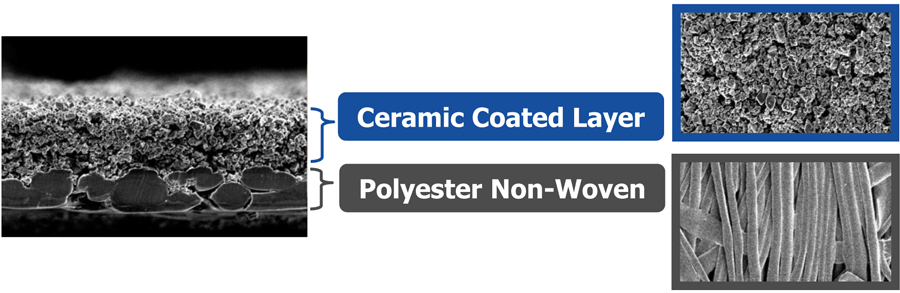

High heat resistance・・・Polyester fiber / Ceramic layer
- • Higher safety offered by high heat resistance.
• Improved drying efficiency with higher temperature.
High electrolyte retention・・・Non-woven
- • Shorter processing time for electrolyte injection.
• Longer cycle life.
Features of NanoBaseX series
Property of OZ-S
Property of OZ-G
Property of OZ-GX

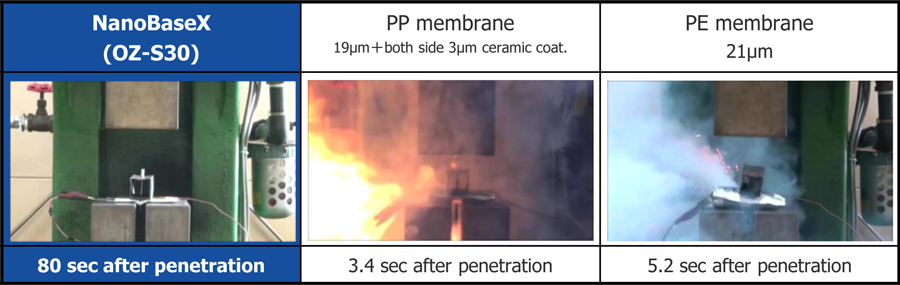

Nail penetration test
- • Cathode：LNO / Anode：Graphite
• Cell capacity：1.7Ah
• Nail diameter：4.5mm / Speed：20mm/sec
Heat resistance test
【Test method】
・Observation of the morphology change of separator with Heated air stream of specific temperature (in the case of the above picture: 400℃）
Heat resistancey test at 400℃
Heat resistancey test at 200℃

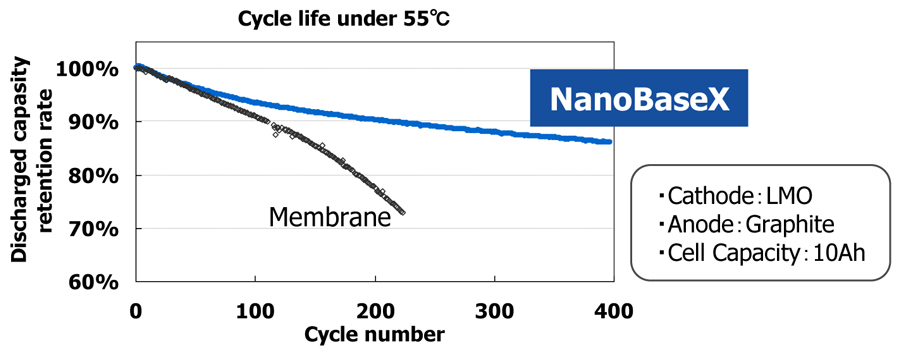

Cycle life
*The data in this document are only for reference and don't ensure the same performance in your condition.
