Mechanisms of ThermoRewrite

Process of printing and erasing

The mechanisms of ThermoRewrite are similar to those of traditional thermal paper, which is based on the reaction between a leuco dye and the developer. However, a specially designed developer is used. Reversible coloring and reversible erasing are achieved by controlling the amount of applied thermal energy and the cooling speed.

[Coloring]

When the mixture of leuco dye and developer is melted at around 170oC and then cooled rapidly, the mixture changes from non-colored to a colored state that is stable
at ordinary temperature.

[Erasing]

When the colored state mixture is heated again for a certain period of time at
120 -140oC and then cooled slowly, the developer creates stable crystalline states,
and the mixture reverts back to the non-colored state.

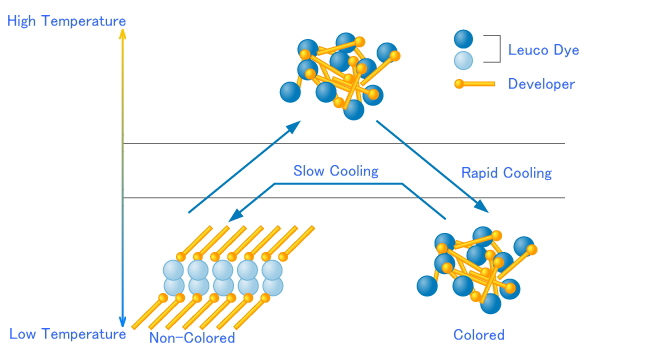

ThermoRewrite Coloring

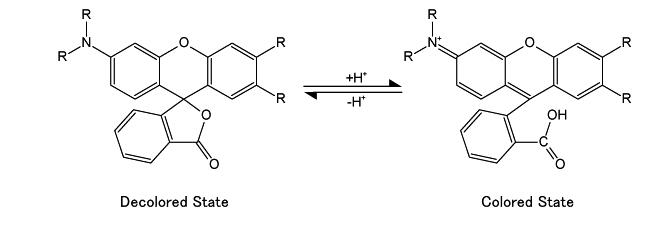

ThermoRewrite chemical formula

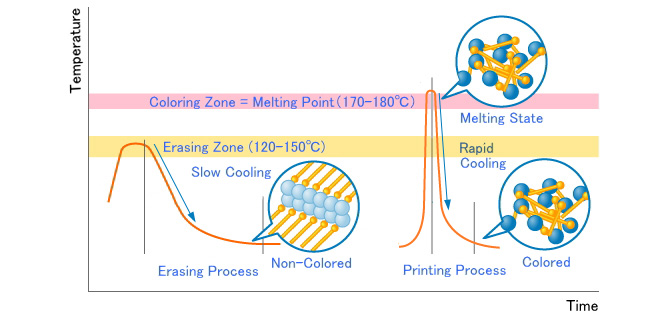

Erasing and rewriting with rewritable printer

The printed image is erased by heating the media for a certain period of time at the required erasing temperature and then cooling it slowly. An erasing bar, erasing roll,
and thermal head are used to erase the printed image.

A new image is formed by heating the media for a very short time to the melting point (170 -180oC) and subsequently cooling it rapidly. A thermal head is used to supply energy.
